This circulator is suitable only for drinking water.

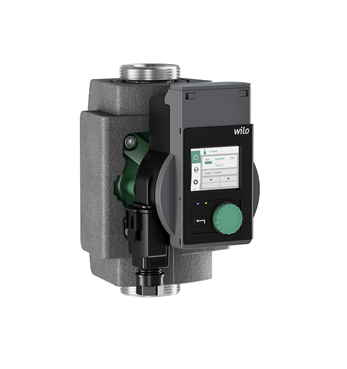

Maintenance-free domestic hot water circulator (glandless pump version) with screwed connection, blocking-current proof synchronous motor according to ECM technology and built-in electronic power control for continuous differential pressure control. With the highest efficiency levels and high starting torque, including automatic deblocking function. Suitable for all domestic hot water systems (+2 to +95 °C).
Control modes:
– T-const. for temperature-controlled mode
– Δp-c for constant differential pressure
– Constant speed (n-const.)
Functions:
– Detection of thermal disinfection of the domestic hot water storage tank
– Fault/warning message display including description and error code in plain text
– Venting routine for automatic venting of the rotor chamber
– Manual restart function for additional deblocking of the pump as required
– Key lock
– Function for resetting the electricity meter or for resetting the settings to the factory settings
– Automatic deblocking function and integrated motor protection
Display:
– Control mode
– Setpoint
– Volume flow
– Delivery head
– Speed
– Temperature
– Power consumption
– Electric consumption
– Active influences (e.g. thermal disinfection, deaeration)
Version:
– Graphic colour display with operation via one button manual operation level
– Slot for Wilo communication modules as an interface for e.g. Bluetooth
– Use the Wilo-Assistant app to read and set operating data and –among other things– set up a commissioning protocol through the Bluetooth interface (as an accessory)
– Minimal consumption only 3 W
– Equipped as standard with a thermal insulation shell
Optional accessories:
– Wilo-Smart Connect module BT for Bluetooth connection to mobile devices via Wilo-Assistant app
– The Wilo-Connect module BMS expands the interface for use in building management systems (BMS)
– Wilo-Connect module Modbus RTU expands the interface for use in building management systems
Operating Data
Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Requested flow:
Requested head:
Max. fluid temperature: 95 °C
Min. fluid temperature: 2 °C
Min. ambient temperature: -10 °C
Max. ambient temperature: 40 °C
Temperature range for applications in domestic hot water circulation systems at ambient temperature of +40 °C in short-time duty 4 h:
Temperature range at max. ambient temperature +40 °C: +2…+70
Maximum operating pressure: 10 bar
Max. permitted total water hardness: 3.57 mmol/l (20°dH)
Motor data
Emitted interference: EN 61000-6-3
Interference resistance: EN 61000-6-2
Mains connection: 1~230V/50 Hz
Power consumption: 20 W
Max. speed: 3,400 1/min
Rated current: 0.26 A
Protection class motor: IPX4D
Threaded cable connection: 1 x PG11
Materials
Pump housing: 1.4409
Impeller: PPO-GF30
Shaft: Oxide ceramic
Bearing: Carbon-graphite
Installation dimensions
Pipe connection on the suction side: G 2, PN 10
Pipe connection on the discharge side: G 2, PN 10
Port-to-port length: 180 mm
Ordering information
Brand: Wilo
Product description: Stratos PICO-Z 30/0,5-4
Net weight, approx.: 1.91 kg
Article number: 4255436
