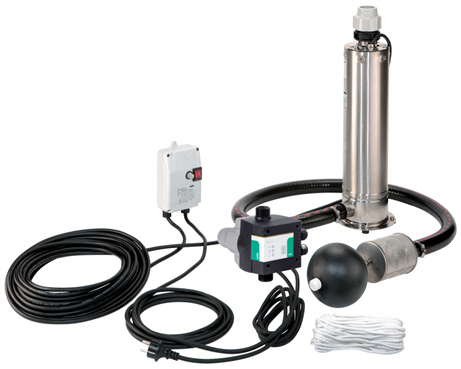

Fully submersible, multistage, self-venting submersible pump with an Rp 1¼ suction port (for optional connection of floating suction filters), and pedestal (including 4 vibration absorbers) for floor installation. For pumping clean water from tanks, rainwater storage tanks or wells up to an immersion depth of 17 m.
Pump with AC version. Setup possible outside of the water.
Complete with 20 m connection cable, switchbox (IP56) with thermal motor protection, ON/OFF switch and 2 m connection cable with shock-proof plug.
Safety rope made of polypropylene
All parts that come into contact with the fluid are corrosion-proof.
All components necessary for basic installation are included in the scope of delivery. These include:
– Pump
– Complete control
– Cable, safety cable
– Cable tie, floating fine suction filter
– Suction hose 1.5 m
Operating Data
Fluid media: Water 100 %
Fluid concentration: 100.00 %
Fluid temperature: 20.00 °C
Requested flow:
Requested head:
Max. delivery head: 64.46 m
Unit
Minimum efficiency index (MEI):
Pipe connection on the discharge side: Rp 1¼, PN 6/10
Maximum operating pressure: 10 bar
Max. sand content: 50 g/m3
Protection class motor: IP68
Max. immersion depth: 17 m
Min. fluid temperature: 5 °C
Max. fluid temperature: 35 °C
Net weight, approx.: 23 kg
Max. diameter: 129 mm
Motor data
Motor design: Submersible motor
Mains connection: 1~230V/50 Hz
Rated power: 0.75 kW
Rated speed: 2,810 1/min
Rated current: 5.6 A
Activation type: Direct On Line (DOL)
Max. switching frequency: 40 1/h
Motor diameter: 127 mm
Min. flow rate at the motor: m/s
Cable
Connection cable length: 20 m
Cable cross-section: 4G1
Materials
Pump housing: 1.4301
Motor housing: 1.4301
Shaft: 1.4301
Impeller: 1.4301
Ordering information
Net weight, approx.: 23 kg
Brand: Wilo
Product description: Sub TWI 5-SE-306EM-PnP/3
Article number: 2543633
