| Product name | TPE 100-480/2 SC-A-F-A-BQQE-RW1 |
| Product No | 92843818 |
| EAN number | 5715120406773 |
| Pump speed on which pump data are based | 2974 rpm |
| Rated flow | 153.4 m³/h |
| Rated head | 49.26 m |
| Maximum head | 480 dm |
| Actual impeller diameter | 198 mm |
| Primary shaft seal | BQQE |
| Code for shaft seal | BQQE |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Pump housing | Cast iron |
| Impeller | Cast iron |
| Material code | A |
| Range of ambient temperature | -10 .. 50 °C |
| Maximum operating pressure | 16 bar |
| Max pressure at stated temp | 16 bar / 120 °C |
| Pipe connection standard | EN 1092-2 |
| Type of connection | DIN |
| Size of connection | DN 100 |
| Pressure rating for connection | PN 16 |
| Port-to-port length | 550 mm |
| Flange size for motor | FF350 |
| Connect code | F |
| Pumped liquid | Water |
| Liquid temperature range | -25 .. 120 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Motor type | 200L |
| Rated power – P2 | 30 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 400 V |
| Rated current | 57 A |
| Cos phi – power factor | 0.95 |
| Rated speed | 300-3000 rpm |
| IE Efficiency class | IE5 |
| Motor efficiency at full load | 94.9 % |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | PTC/PT1 |
| Motor No | 92669178 |
| VFD product number | 99616823 |
| Frequency converter | Built-in |
| Type of frequency converter | CUE 3X380-500V IP55 RUG 30KW |
| Appr. for VFD | CE, CULUS, C-TICK |
| Minimum efficiency index, MEI ≥ | 0.66 |
| Net weight | 278 kg |
| Gross weight | 421 kg |
| Shipping volume | 1.28 m³ |
| Config. file no | 92843899 |

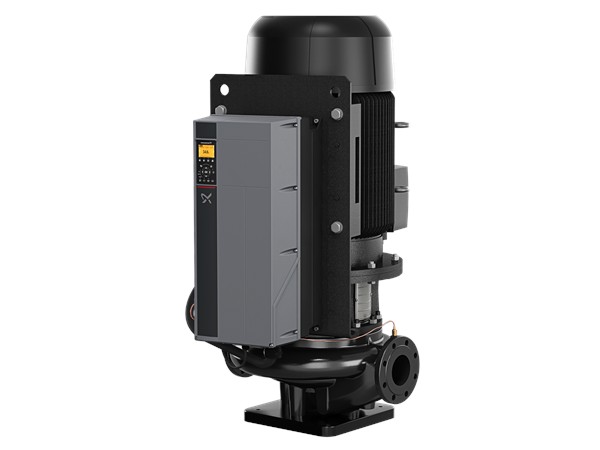

TPE 100-480/2 SC-A-F-A-BQQE-RW1
