| Product name | TPE2 D 32-200 N-A-F-A-BQBE-FYC |
| Product No | 99223554 |
| EAN number | 5712608982668 |
| Pump speed on which pump data are based | 5200 rpm |
| Rated flow | 14 m³/h |
| Rated head | 13.1 m |
| Maximum head | 200 dm |
| Actual impeller diameter | 62 mm |
| Primary shaft seal | BQBE |
| Code for shaft seal | BQBE |
| Curve tolerance | ISO9906:2012 3B2 |
| Pump version | A |
| Pump housing | Cast iron |
| Impeller | Composite |
| Material code | A |
| Range of ambient temperature | -20 .. 50 °C |
| Maximum operating pressure | 16 bar |
| Max pressure at stated temp | 16 bar / 120 °C |
| Pipe connection standard | EN 1092-2 |
| Type of connection | DIN |
| Size of connection | DN 32 |
| Pressure rating for connection | PN 16 |
| Port-to-port length | 220 mm |
| Flange size for motor | 56C |
| Connect code | F |
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 120 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Motor type | 80A |
| Rated power – P2 | 0.75 kW |
| Mains frequency | 50 / 60 Hz |
| Rated voltage | 1 x 200-240 V |
| Rated current | 4.7-4 A |
| Cos phi – power factor | 0.98 |
| Rated speed | 480-5900 rpm |
| IE Efficiency class | IE5 |
| Motor efficiency at full load | 85.7 % |
| Number of poles | 0 |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | ELEC |
| Motor No | 99138029 |
| Control panel | HMI200 – Standard |
| Function Module | FM300 – Advanced |
| Frequency converter | Built-in |
| Minimum efficiency index, MEI ≥ | 0.70 |
| Net weight | 44.4 kg |
| Gross weight | 57.7 kg |
| Shipping volume | 0.252 m³ |
| Config. file no | 98819167 |

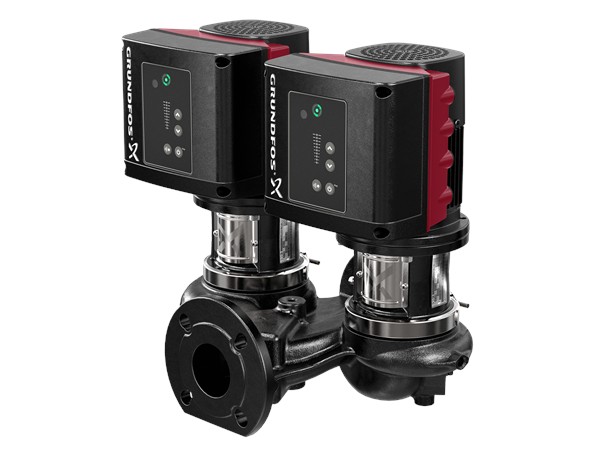

TPE2 D 32-200 N-A-F-A-BQBE-FYC
