| Product name | UNILIFT AP12.50.11.A1 |
| Product No | 96001965 |
| EAN number | 5700390476243 |
| Maximum flow | 8.33 l/s |
| Maximum head | 17 m |
| Type of impeller | SEMI OPEN |
| Max. Particle | 12 mm |
| Approvals | CE,RCM,VDE,LGABG,EAC,TUVRHWID,MORO,UKCA,SEPRO |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Cable union | Brass |
| Range of ambient temperature | 0 .. 55 °C |
| Type of connection | Rp |
| Size of connection | 2 inch |
| Maximum installation depth | 2 m |
| Inst dry/wet | D/S |
| Place of installation | Indoor |
| Liquid temperature range | 0 .. 55 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Power input P1 | 1.7 kW |
| Motor type 1-phase | PSC |
| Rated power – P2 | 1.1 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Rated current | 8.5 A |
| Cos phi – power factor | 0.92 |
| Rated speed | 2760 rpm |
| Capacitor size – run | 20 µF/400 V |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | CONTACT |
| Thermal protec | internal |
| Length of power cable | 5 m |
| Type of cable plug | SCHUKO |
| Level switch | A |
| Net weight | 14.9 kg |
| Gross weight | 15.2 kg |
| Environmental approvals | WEEE |

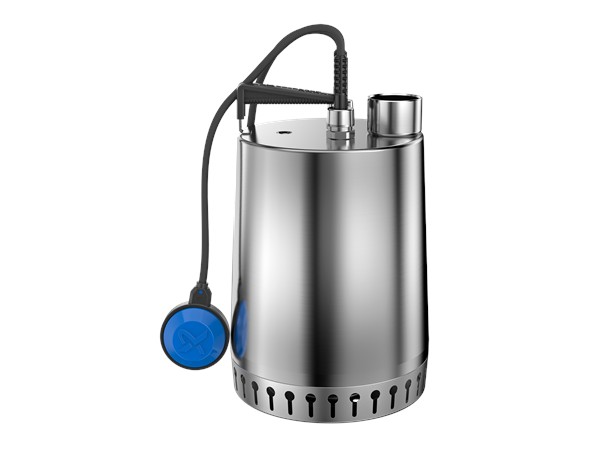

UNILIFT AP12.50.11.A1
