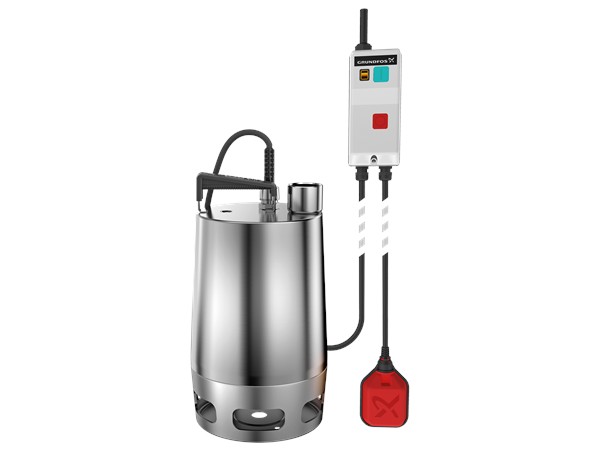

| Product name | UNILIFT AP35.40.08.A3V |
| Product No | 96023876 |
| EAN number | 5700390547585 |
| Maximum flow | 5 l/s |
| Maximum head | 11 m |
| Type of impeller | VORTEX |
| Max. Particle | 35 mm |
| Approvals | CE,RCM,LGABG,EAC,TUVRHWID,MORO,UKCA,SEPRO |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Cable union | Brass |
| Range of ambient temperature | 0 .. 55 °C |
| Type of connection | Rp |
| Size of connection | 1 1/2 inch |
| Maximum installation depth | 7 m |
| Inst dry/wet | D/S |
| Place of installation | Indoor/outdoor |
| Liquid temperature range | 0 .. 55 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Power input P1 | 1.2 kW |
| Rated power – P2 | 0.7 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 400 V |
| Rated current | 2 A |
| Cos phi – power factor | 0.86 |
| Rated speed | 2820 rpm |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| Thermal protec | external |
| Length of power cable | 10 m |
| Type of cable plug | CEE |
| Level switch | A |
| Net weight | 14.7 kg |
| Gross weight | 17.2 kg |
| Environmental approvals | WEEE |
UNILIFT AP35.40.08.A3V
