| Product name | Unilift CC9 – A1 HG |
| Product No | 98624466 |
| EAN number | 5711498431348 |
| Rated flow | 1.85 l/s |
| Maximum flow | 3.89 l/s |
| Rated head | 6.56 m |
| Maximum head | 9 m |
| Max. Particle | 10 mm |
| Approvals | CE,LGA,VDE,UKCA,SEPRO |
| Pump housing | Polypropylene |
| Impeller | Composite |
| Motor | Stainless steel |
| Shaft | Stainless steel |
| Strainer | Composite |
| Range of ambient temperature | 0 .. 40 °C |
| Type of connection | R |
| Size of connection | 1 1/4 inch |
| Maximum installation depth | 7 m |
| Liquid temperature range | 0 .. 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Power input P1 | 780 W |
| Rated power – P2 | 0.465 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 220-240 V |
| Rated current | 3.5 A |
| Rated speed | 2850 rpm |
| Capacitor size – run | 8 µF/450 V |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | B |
| Ex-protection standard | YES |
| Length of power cable | 10 m |
| Type of cable plug | SCHUKO |
| Level switch | A |
| Net weight | 6.94 kg |
| Gross weight | 7.7 kg |
| Shipping volume | 0.017 m³ |
| Danish VVS No. | 391280393 |
| Finnish LVI No. | 4822565 |
| Norwegian NRF no. | 9045236 |
| Environmental approvals | WEEE |

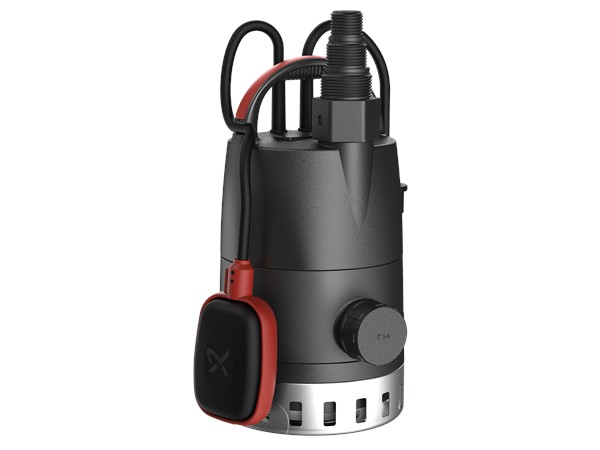

Unilift CC9 – A1 HG
