| Product name | UPS 25-50 160 |
| Product No | 96281430 |
| EAN number | 5700830498033 |
| Speed no | 3 |
| Rated flow | 1.77 m³/h |
| Rated head | 2.531 m |
| Maximum head | 50 dm |
| TF class | 110 |
| Approvals | VDE,EAC |
| Pump housing | Cast iron |
| Impeller | Composite |
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | 10 bar |
| Type of connection | G |
| Size of connection | 1 1/2 inch |
| Pressure rating for connection | PN 10 |
| Port-to-port length | 160 mm |
| Pumped liquid | Water |
| Liquid temperature range | 2 .. 110 °C |
| Selected liquid temperature | 60 °C |
| Density | 983.2 kg/m³ |
| Power input in speed 1 | 35 W |
| Power input in speed 2 | 45 W |
| Max. power input | 50 W |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Current in speed 1 | 0.16 A |
| Current in speed 2 | 0.2 A |
| Current in speed 3 | 0.23 A |
| Capacitor size – run | 2 µF |
| Enclosure class (IEC 34-5) | IP44 |
| Insulation class (IEC 85) | F |
| Ex-protection standard | NONE |
| Thermal protec | Impedance protected |
| Terminal box position | 9H |
| Net weight | 2.5 kg |
| Gross weight | 2.7 kg |
| Shipping volume | 0.004 m³ |

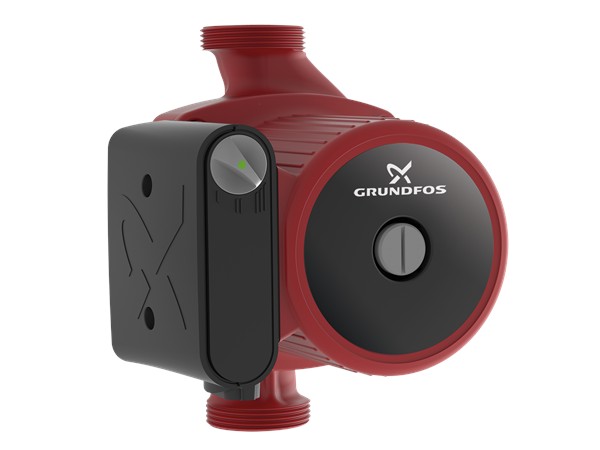

UPS 25-50 160
