| Product name | UPS 32-100 F 220 |
| Product No | 95906483 |
| EAN number | 5700311290279 |
| Speed no | 3 |
| Rated flow | 6.9 m³/h |
| Rated head | 7.027 m |
| Maximum head | 100 dm |
| TF class | 110 |
| Approvals | EAC |
| Pump housing | Cast iron |
| Impeller | Composite |
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | 10 bar |
| Type of connection | DIN |
| Size of connection | DN 32 |
| Pressure rating for connection | PN 10 |
| Port-to-port length | 220 mm |
| Pumped liquid | Water |
| Liquid temperature range | -25 .. 110 °C |
| Selected liquid temperature | 60 °C |
| Density | 983.2 kg/m³ |
| Power input in speed 1 | 280 W |
| Power input in speed 2 | 340 W |
| Max. power input | 345 W |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Current in speed 1 | 1.3 A |
| Current in speed 2 | 1.5 A |
| Current in speed 3 | 1.52 A |
| Capacitor size – run | 8 µF |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | H |
| Ex-protection standard | CONTACT |
| Thermal protec | internal |
| Terminal box position | 9H |
| Net weight | 9.05 kg |
| Gross weight | 9.85 kg |
| Shipping volume | 0.021 m³ |

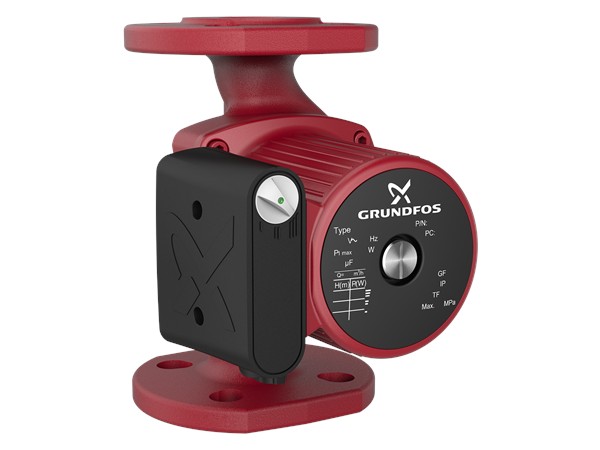

UPS 32-100 F 220
