| Product name | UPSD 50-120 F 280 |
| Product No | 96402105 |
| EAN number | 5700390659554 |
| Speed no | 3 |
| Rated flow | 16.8 m³/h |
| Rated head | 7.18 m |
| Maximum head | 120 dm |
| Approvals | AAA,EAC |
| Model | C |
| Pump housing | Cast iron |
| Impeller | Stainless steel |
| Range of ambient temperature | 0 .. 80 °C |
| Maximum operating pressure | 10 bar |
| Pipe connection standard | EN 1092-2 |
| Type of connection | DIN |
| Size of connection | DN 50 |
| Pressure rating for connection | PN 6/10 |
| Port-to-port length | 280 mm |
| Pumped liquid | Water |
| Liquid temperature range | -10 .. 120 °C |
| Selected liquid temperature | 60 °C |
| Density | 983.2 kg/m³ |
| Power input in speed 1 | 620 W |
| Power input in speed 2 | 700 W |
| Max. power input | 760 W |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230-240 V |
| Current in speed 1 | 3.05 A |
| Current in speed 2 | 3.35 A |
| Current in speed 3 | 3.6 A |
| Cos phi in speed 1 | 0.88 |
| Cos phi in speed 2 | 0.91 |
| Cos phi | 0.92 |
| Capacitor size – run | 25 µF/400 V |
| Insulation class (IEC 85) | H |
| Enclosure class (IEC 60529) | X4D |
| Ex-protection standard | CONTACT |
| Thermal protec | internal |
| Relay | with relay |
| Terminal box position | 12H |
| Net weight | 57.1 kg |
| Gross weight | 59.8 kg |
| Shipping volume | 0.125 m³ |

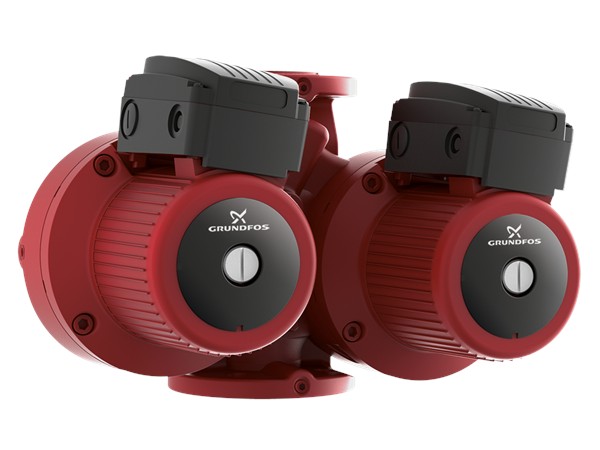

UPSD 50-120 F 280
