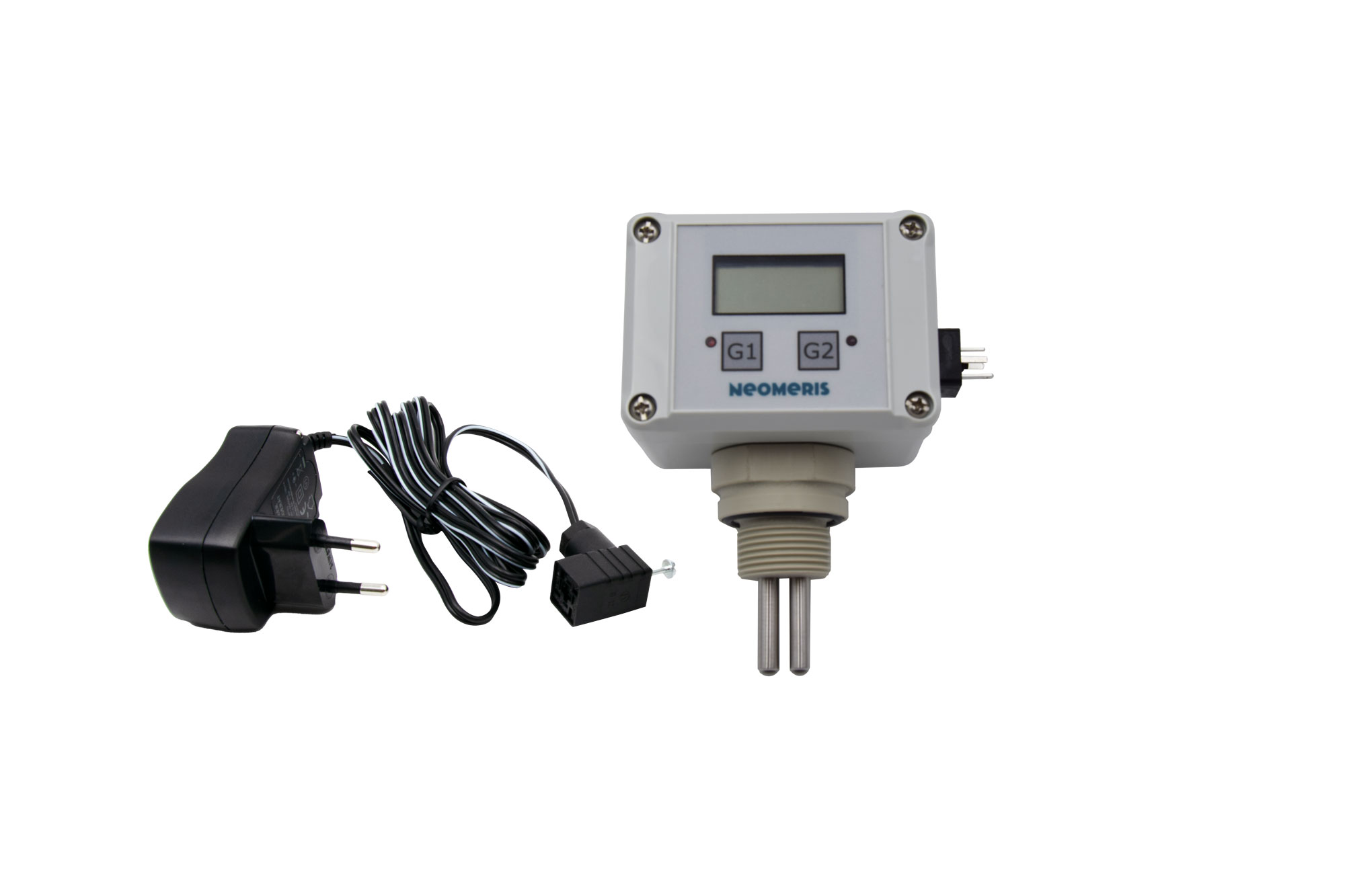

N-LF10R conductivity meter with relay output 0-10 µS – integrated 3/4″ screw-in measuring cell
Device for measuring the electrical conductivity of aqueous solutions in conjunction with an integrated two-electrode screw-in measuring cell 3/4 inch without temperature compensation.
The devices are selected according to the respective measuring range and are available as a variant with or without potential-free relay output.
Application examples
softener cartridges
complete desalination
reverse osmosis
Added value
Operation at 9 V DC via supplied plug-in power supply
1 potential-free relay with switchable mode of operation of relay control
Limit value display optically by means of LEDs
Technical data
Measuring ranges: 0 – 10 / 100 / 1000 μS/cm, depending on instrument type
Limit value displays: Optical by means of LEDs, limit values adjustable between 0 and 100 % of the measuring range
1 potential-free relay contact, max. 2 A / 250 V AC, 60 W / 62.5 VA (if selected)
Power supply: 9 V DC via plug-in power supply unit 100 – 240 V AC
Power consumption: approx. 1 W
Protection class: IP 65
Housing: polycarbonate housing, 82 x 60 x 57 mm
Connections: side connection for plug-in power supply and one relay output (if selected)
Measuring cell: ¾”, PP, PN 6, Tmax. 60°C
