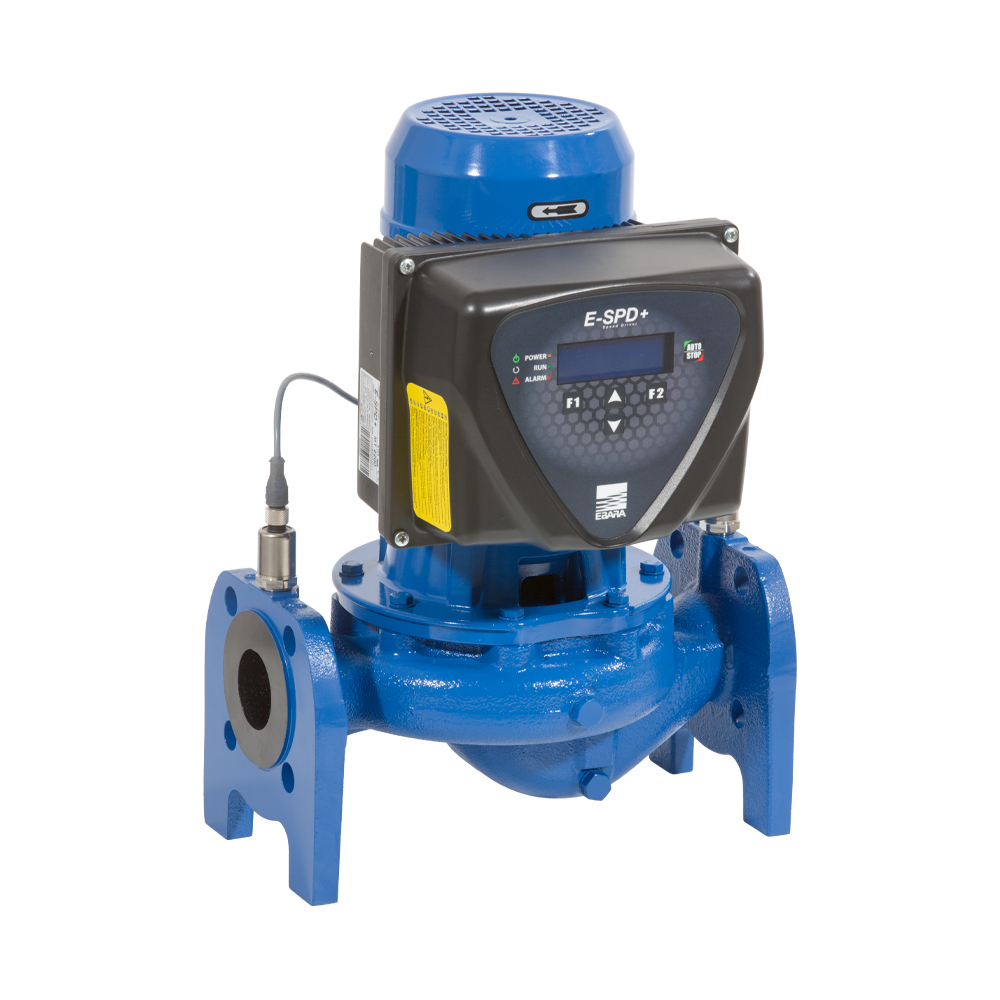

Part Number: 3E-K 50-125/1,5Q1AEGG TT
| 1 | Pump type | IN-LINE CENTRIFUGAL PUMP | Fluid | Water |
| 2 | Number of pumps / Reserve | 1 / 0 | Liquid temperature °C | 20 |
| 3 | Flow m³/h | Kin. viscosity cSt | 1.005 | |
| 4 | Head m | Vapour pressure kPa | 2.34 | |
| 5 | Geodetic head m | PH value | ||
| 6 | Inlet pressure (pin) kPa | 0 | Density kg/m³ | 998.3 |
| 7 | Available system NPSH | Solids Weight % | 0 | |
| 8 | Ambient temperature °C | 20 |
| Booster Set | |||||
|---|---|---|---|---|---|
| 9 | Pump Name | 3E-K 50-125/1,5Q1AEGG TT | Frequency Hz | None | 50 |
| 10 | Design | IN-LINE CENTRIFUGAL PUMP | Installation type | None | STANDARD |
| 11 | Manufacturer | EBARA | ImpellernDiameter | Max. mm | 125 |
| 12 | Speed rpm | 2900 | None | Designed mm | 125 |
| 13 | No. of Stage | 1 | None | Min. mm | 125 |
| 14 | Connection Suction side | Flow | Operating m³/h | ||
| 15 | Connection Discharge side | None | Max- m³/h | 24 | |
| 16 | Max Working Pressure kPa | 1600 | None | Min- m³/h | 6 |
| 17 | Shut-off head kPa | 178.14 | Head | Operating m | |
| 18 | Total weight kg | See the table of “Dimensions”. | None | – (Qmax.) m | 15.2 |
| 19 | Shaft power kW | None | – (Qmin.) m | 18.6 | |
| 20 | Max. Shaft Power at max. impeller kW | None | 1.51 | ||
| 21 | Required pump NPSH m | Efficiency % | None | ||
| Materials | ||||
|---|---|---|---|---|
| 22 | Impeller | EN 1.4301 (AISI 304) | ||
| 23 | Casing cover | EN 1.4301 (AISI 304) | ||
| 24 | Casing | CAST IRON EN-GJL-250-EN-1561 | ||
| 25 | Shaft | EN 1.4301 (AISI 304) | ||
| 26 | O-ring | EPDM | ||
| 27 | Braket | ALUMINUM | ||
| Motor | ||||
|---|---|---|---|---|
| 28 | Manufacturer | EPE Standard | Insulation class | F |
| 29 | Type | TEFC_3E-K_2_1.5_400_1 | Phases | 3~ |
| 30 | Specific design | IE3 / 50 Hz / Pole pairs 1 | Frame size | 80 |
| 31 | Rated power kW | 1.5 | Weight kg | |
| 32 | Number of poles | 2 | Electric voltage V | 400 |
| 33 | Speed rpm | 2900 | Electric current A | 3.3 |
| 34 | Degree of protection | IP55 | ||
