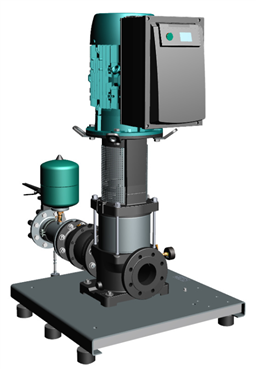

Compact pressure boosting system, for direct or indirect connection. Consisting of a non self-priming, vertically-mounted stainless steel high-pressure centrifugal pump in a glanded version, for which the pump is fitted with a frequency converter. Ready for connection with stainless steel pipework, mounted on a base frame, with all necessary measurement and adjustment equipment.
For fully automatic water supply and pressure boosting in residential, office and administrative buildings, hotels, hospitals, department stores (systems with a standby pump are to be provided for this purpose within the scope of DIN 1988 and DIN EN 806) as well as in industrial systems.
For pumping drinking water, process water, cooling water, fire water (apart from fire-extinguishing systems in accordance with DIN 14462 and with the approval of the local fire safety authorities) or other types of industrial water that do not attack the materials either chemically or mechanically and do not contain abrasive or long-fibre constituents.
Special features/product advantages
•Sturdy system due to MVIE series stainless-steel high-pressure centrifugal pumps with air-cooled integrated frequency converter
•Frequency converter with superproportionally large control range
•Integrated full motor protection via PTC
•Integrated dry-running detection with automatic cut-out in event of low water via performance characteristics of the motor control electronics
Equipment/function
1 pump of the MVIE (70 or 95) series with speed controlled motor via integrated frequency inverter mounted on galvanized steel height adjustable base frame.
All components in contact with fluid are corrosion resistant
On pressure side:
•Shut-off valve
•Non return valve
•Diaphragm pressure vessel 8 l, PN 16
•Pressure sensor 4..20mA
•Pressure gauge
On suction side:
•Pressure sensor 4..20mA
•Pressure gauge
Set up on galvanised base frame with height-adjustable vibration absorber with diaphragm pressure vessel (volume 8 l) including flow fitting in accordance with DIN 4807, integrated non-return valve, pressure sensors (4 – 20 mA) and pressure gauge for the automatic system control with p = constant or p = variable function. Delivery head setpoint infinitely variable by means of one-button operation available on the frequency converter. Automatic zero-volume detection and deactivation. Built-in motor protection by means of electronic current monitoring.
With LCD display for status and actual pressure display, as well as one-button operation for configuring the pressure level and all setpoint defaults, as well as potential-free contacts for the collective fault and collective run signals.
Wired and ready for connection and piped with shut-off valve on the pressure side mounted to the base frame.
Operating Data
Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Requested flow:
Requested head:
Number of pumps: 1
Fluid temperature: 3…60 °C
Ambient temperature: 5…50 °C
Maximum operating pressure: 16 bar
Maximum inlet pressure: 1,000 kPa
Motor data (per motor)
Mains connection: 3~400V/50 Hz
Rated power: 11 kW
Rated current: 19.6 A
Rated speed:
Motor efficiency class: IE5
Insulation class: F
Protection class motor: IP55
Protection class switchgear:
Materials
Pump housing: 5.1301/EN-GJL-250
Impeller: 1.4408
Shaft: 1.4057
Shaft seal: BQ7EGG
Gasket material: EPDM
Pipework material: 1.4404
Installation dimensions
Pipe connection on the suction side: DN 100, PN 10
Pipe connection on the discharge side: DN 100, PN 16
Ordering information
Brand: Wilo
Product description: COR-1 MVIE 7002-GE
Net weight, approx.: 269 kg
Article number: 2551690
