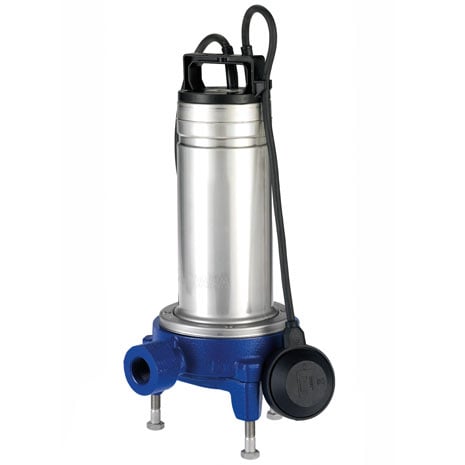

Pump Model: DOMO GRI 116
Manufacturer & Type
-
Brand: Lowara (Xylem)
-
Model: DOMO GRI 116
-
Pump Type: Submersible wastewater grinder pump
-
Installation Type: Submersible
Hydraulic Performance
-
Flow at Duty Point: 0 US g.p.m.
-
Head at Duty Point: 0 ft
-
Maximum Head (H(Q=0)): 94.7 ft
-
Maximum Shaft Power: 1.31 hp
-
Hydraulic Efficiency: 25.9%
-
Performance Standard: ISO 9906:2012 – Grade 3B
Motor and Electrical Specifications
-
Rated Power (P2): 1.4751 hp
-
Nominal Speed: 3500 rpm
-
Rated Voltage: 230 V
-
Rated Current: 6.74 A
-
Frequency: 60 Hz
-
Phase: Single-phase (1~)
-
Protection Class: IP X8
-
Insulation Class: F
-
Permitted Voltage Tolerance: ±10%
Materials and Construction
-
Pump Body: Cast Iron (ASTM Class 30)
-
Impeller: PBT (Polybutylene Terephthalate)
-
Suction Cover: Cast Iron (ASTM Class 30)
-
Fixing Ring: Stainless Steel (AISI 304)
Shaft Seal Configuration
-
Fixed Assembly:
-
Seal Material: Silicon Carbide
-
Elastomers: NBR
-
Springs: AISI 316
-
-
Rotating Assembly:
-
Seal Material: Silicon Carbide
-
Springs: AISI 316
-
Physical Specifications
-
Weight: 41.887 lb
-
Discharge Port: Rp 1
-
Dimensions (inches):
-
H: 446
-
B: 204
-
C: 242
-
Other: 140, 200, 60, 104
-
Fluid Parameters
-
Medium: Pure Water (100%)
-
Temperature: 39.2°F
-
Density: 62.4 lb/ft³
-
Kinematic Viscosity: 1.69 × 10⁻⁵ ft²/s
