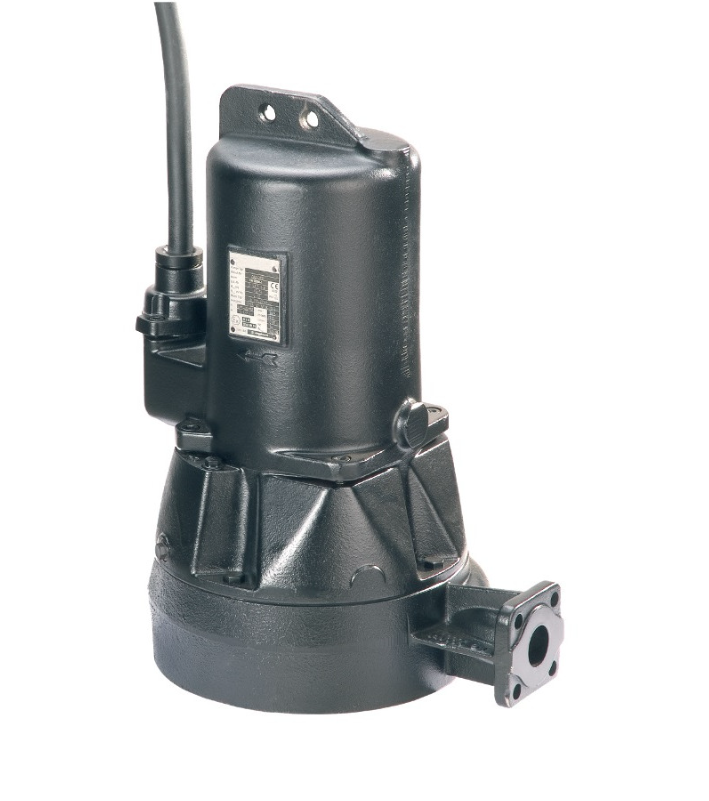

Submersible sewage pump: MTC 32 F 15
Motor type: T 13-2/16H
Type of impeller: Impeller with cutter plate
Type of installation: Suspension device
VERSION
Submersible sewage pump as a submersible, single-stage monobloc unit in stationary, vertical installation, for pumping untreated sewage that does not attack the pumps either chemically or mechanically. Pump with radially arranged discharge port and axial pump inlet. Unit structure is easy to service due to split motor and pump housing unit.
The pumping values must be guaranteed in accordance with ISO 9906 Annex A.
For the pump type MTC 32 F 15, the version type also depends on the motor!
Please select a motor in the drop-down menu on the right and read the relevant description:
PUMP PART DATA
Type of impeller: Impeller with cutter plate
Full impeller diameter: 160
Adapted impeller diameter: 160 mm
Free ball passage: 6 mm
Pressure port:
Suction port:
Possible operating modes:
Suspension unit: DN36/1R 52.14650/1
WEIGHTS
Max. weight of the pump part: 10 kg
Weight of the motor: 42.5 kg
Max. weight of the unit: 52.5 kg
MATERIALS
Pump housing EN-GJL-250
Impeller EN-GJL-250
Suction ports EN-GJL-250
Cutting ring 1.4034
Rotor Abrasit
MOTOR DATA
Rated power: 5 kW
Power consumption of the motor at rated power: 6.3 kW
Current consumption of the motor at rated power: 10.79 A
Number of poles: 2
Rated speed: 3,402 1/min
Cos phi at rated power: 0.88
Cos phi at start:
Efficiency of the motor at rated power: 80 % %
Rated frequency: 60 Hz Hz
Operating mode (VDE 0530): S1
Max. fluid temperature: 40 °C
Starting current for direct starting: 78.0 A
Starting current for star-delta starting: 26.0 A
Starting torque: 23.0 Nm
Moment of inertia: 0.00304 kg m²
Maximum switching frequency: 15
Motor connection line: 7G1,5 H07RN-F
Maximum possible motor connection line: 10G1,5 4×4
DUTY POINT DATA
Volume flow:
Delivery head:
Power consumption of the pump at duty point (P2):
Pump efficiency at duty point: %
Power consumption of the motor at duty point (P1):
NPSH value of the pump at duty point:
Speed at duty point: 3414 1/min
