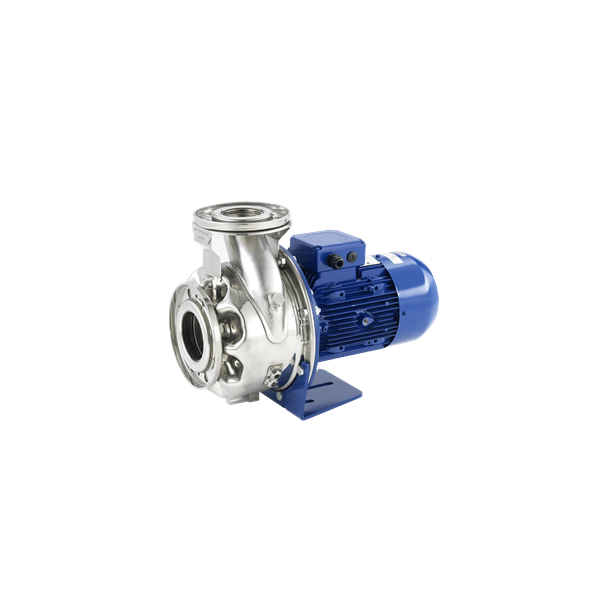

| Operating Data | |
|---|---|
| Operating speed | 1700 rpm Stages 1 Min. inch 4 7/16 |
| Head H(Q=0) | 17 at |
| Flow Max | US g.p.m. 102.6 |
| Flow Min | US g.p.m. 38.5 |
| Total weight | lb 37.5 NPSH 3% ft |
| Materials | |
| Impeller | Stainless steel / AISI 316L Uniten 3K VBVGG |
| Rotating ring | Ceramic |
| Stationary ring | Carbon graphite resin impregnated |
| Springs | CrNiMo – Steel |
| Motor data | |
| Rated power | 0.33526 hp Rated current 1.05 A |
| Rated voltage | 265 V |
| Degree of protection | IP55 |
