Product Name

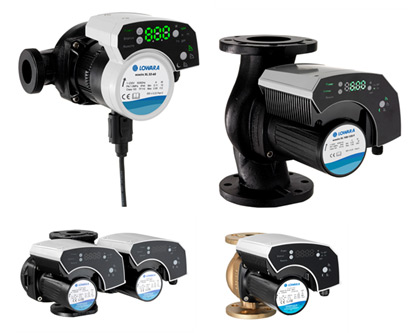

Lowara Ecocirc XL 40-80 F
General Specifications
-
Standard: ISO 9906:2012 – Grade 3B
-
Rated Voltage: 230 V
-
Frequency: 50 Hz
-
Rated Current: 1.4 A
-
Protection Class: IP 44
-
Insulation Class: F
-
Energy Efficiency Index (EEI): ≤ 0.23
-
Sound Pressure Level: ≤ 48 dB(A)
-
Leakage Current: < 3.5 mA
-
Electrical Connection: Terminals
-
Digital Input: Contact load 5V, 10 mA
-
Digital Output: Vmax < 250 VAC / Imax < 2 A
-
Analog Input: 0–10 V / 4–20 mA
-
Communication Protocol: None
-
Nominal Pressure: PN 6/10
-
Operating Medium: Water (100%)
-
Liquid Temperature:
-
Heating: -10°C to +110°C
-
Domestic Hot Water: -10°C to +85°C
-
Hydraulic Performance
-
Max Head: ~8.5 m
-
Max Flow Rate: ~18 m³/h
-
Power Input (P1): up to ~0.36 kW
Materials
-
Pump Housing: Cast Iron
-
Motor Housing: Aluminum
-
Rotor Can: Stainless Steel
-
Shaft: Stainless Steel
-
Thrust Bearing: Aluminum
-
Bush Bearing: Carbon, resin impregnated
-
Impeller: Stainless Steel
-
Wear Ring: PPS
-
Bearing Plate: Stainless Steel
-
O-Rings: EPDM
-
Control Box: Stainless Steel
Pump Dimensions (mm)
-
B1: 322
-
B2: 256
-
B3: 66
-
B4: 130
-
B5: 51
-
C3: 128
-
C4: 209
-
C5: 81
-
D1: 150
-
D2: 40
-
D3: 100 / 100
-
D4: 4 x 14 / 19
-
D5: 84
-
G: DN 40
-
H1: 220
-
H2: 94
-
H3: 96
-
H4: 86
-
L (Port-to-Port): 220
-
Net Weight: 13.8 kg
-
Gross Weight: 17.3 kg
