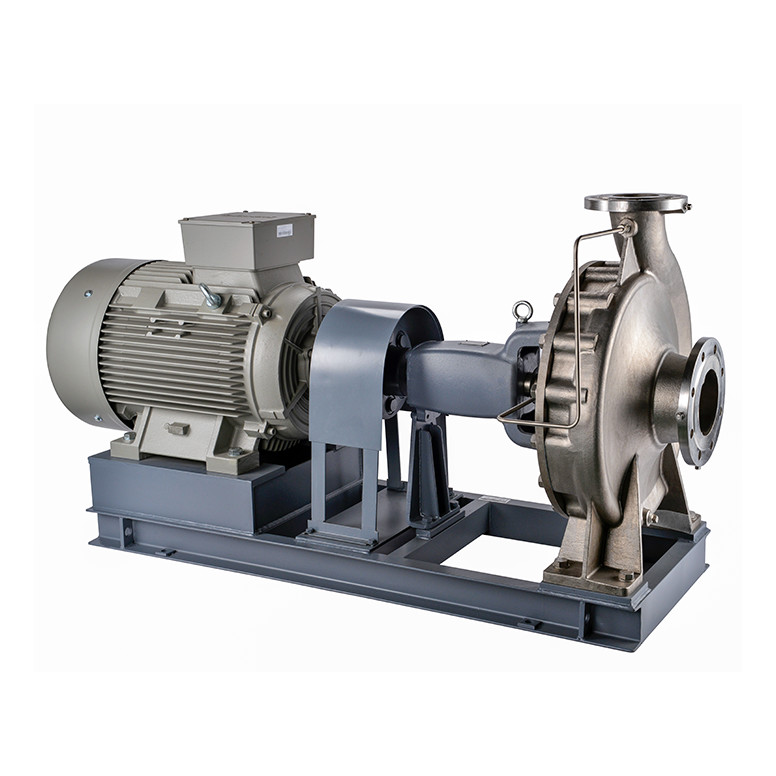

Name: Ebara - 32X32 FSS2FC 5 .75 H - Part Number: 32X32 FSS2FC 5 .75 H
Brand: Waterials
SKU: 32X32 FSS2FC 5 .75 H
Availability: InStock

Part Number: 32X32 FSS2FC 5 .75 H

1	Pump type	End Suction Volute Pump	Fluid	Water
2	Number of pumps / Reserve	1 / 0	Liquid temperature °C	20
3	Flow m³/h		Kin. viscosity mm²/s	1.005
4	Head m		Vapour pressure bar	0.0234
5	Geodetic head m		PH value
6	Inlet pressure (pin) bar	0	Density kg/m³	998.3
7	Available system NPSH		Solids Weight %	0
8	Ambient temperature °C	20

Booster Set
9	Pump name	32X32 FSS2FC 5 .75 H	Frequency Hz	None	50
10	Design	End Suction Volute Pump		None
11	Manufacturer	EBARA	ImpellernDiameter	Max. mm	126
12	Speed rpm	2950	None	Designed mm	126
13	No. of Stage	1	None	Min. mm	102
14	Connection Suction side	JIS 16K	Flow	Operating m³/h
15	Connection Discharge side	JIS 16K	None	Max- m³/h	10.8
16	Max Working Pressure bar	16	None	Min- m³/h	1.08
17	Shut-off head bar	1.91	Head	Operating m
18	Total weight kg	See the table of “Dimensions”.	None	– (Qmax.) m	12.5
19	Shaft power kW		None	– (Qmin.) m	19.2
20			Max. Shaft Power at max. impeller kW	None	0.71
21	Required pump NPSH m		Efficiency %	None

Materials
22	Casing	SCS13	M.S.mating ring	SIC
23	Impeller	SCS13	M.S.seal ring	Carbon
24	Shaft	SUS316L
25	Case wear ring	SUS316
26	Mechanical seal	SIC/Carbon
27	Ball bearing	Grease

Motor
28	Manufacturer	SIEMENS	Insulation class	F
29	Type	80M_B3_0.75_3_380	Phases	3~
30	Specific design	TEFC / 50 Hz / Pole pairs 1	Frame size	80 M
31	Rated power kW	0.75	Weight kg	16
32	Number of poles	2	Electric voltage V	380
33	Speed rpm	2835	Electric current A	1.64
34	Degree of protection	IP55
