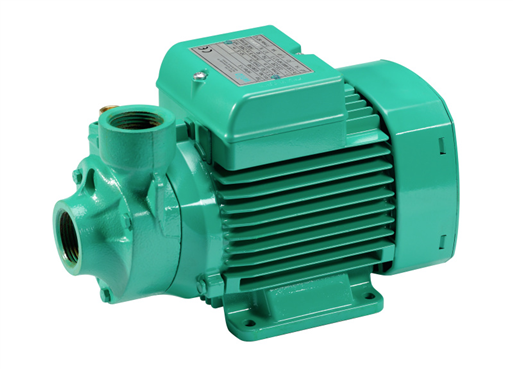

Non self-priming cast iron peripheral pumps with brass impellers and low energy consumption, well-equipped for use in homes and buildings.
The delivery head and pumping characteristics of these two affordable pumps are perfectly tailored to domestic needs.
Applications
– Domestic water supply
– Irrigation
– Rainwater utilisation
Operating Data
Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Fluid concentration: 100.00 %
Requested flow:
Requested head:
Max. delivery head: 35.83 m
Product data
Maximum operating pressure: 6.5 bar
Min. fluid temperature: 5 °C
Max. fluid temperature: 60 °C
Max. ambient temperature: 40 °C
Motor data
Mains connection: 1~230V/50 Hz
Voltage tolerance: +-10 %
Rated power: 0.37 kW
Rated current: 2.5 A
Rated speed: 2,900 1/min
Insulation class: F
Protection class: X4
Materials
Pump housing: EN-GJL-200
Impeller: Brass, CW617N
Shaft: 1.4104
Shaft seal: BVPFF
Gasket material: NBR
Stage chamber material:
Installation dimensions
Pipe connection on the suction side: Rp 1, PN 6
Pipe connection on the discharge side: Rp 1, PN 6
Ordering information
Brand: Wilo
Product description: HiPeri 1-4
Net weight, approx.: 5 kg
Article number: 4186197
