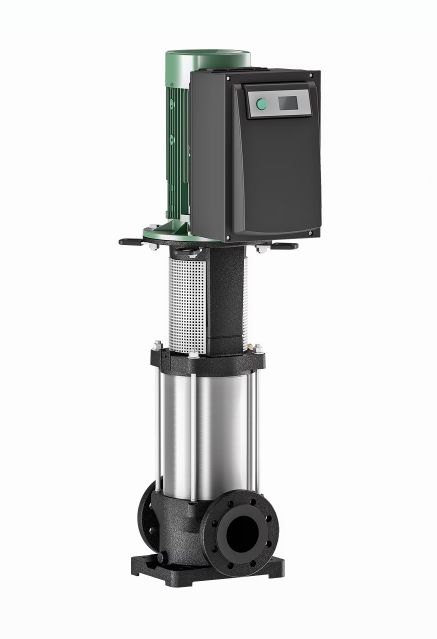

Non-self-priming vertical high-pressure multistage centrifugal pump in in-line design with integrated air-cooled frequency converter. The integrated frequency converter enables variable speed, pressure and PID control.
Control modes
– “Speed control”: Manually via Green Button or an external signal
– Constant or variable pressure: Pressure control via sensor, setpoint configuration via Green Button or external signal
– PID control: other constant control variables (temperature, volume flow, pressure…) with sensor, setpoint adjustment with Green Button, by means of external signals
The electronic module offers various protective functions including overload protection, low-water recognition as well as safeguards for mains under or overvoltage, high ambient temperature, phase failure, blocked pumps and short-circuits. Error messages are output to the display.
Input:
– In1: Input, sensor signal 4 – 20 mA, 0 – 10 V, 0 – 20 mA or 2 – 10 V
– In2: Input, setpoint 0 – 20 mA, 0 – 10 V, 4 – 20 mA or 2 – 10 V
Output:
– Voltage output +24 V with max. contact strength of 60 mA
– Potential-free collective run and fault signals
– External On/Off mode. Infrared communication
– Slot for Wilo-IF modules Modbus, BACnet, CAN, PLR, LON for connection to the building automation
The pump and motor shafts are connected via clamp coupling. A special lantern ball bearing ensures optimum admission of axial thrusts.
The pump is suitable for water supply and boosting, industrial circulation systems, process water and cooling water circulation systems, fire-fighting systems, washing systems and irrigation. It can also be used in washing systems as well as for irrigation.
Special features/Product advantages
– Corrosion-resistant impellers and guide vanes and stage housings
Scope of delivery
– Wilo-Multivert MVIE high-pressure multistage centrifugal pump
– Installation and operating instructions
Notes on the design
– Round counter flanges are available as accessories
– Optional plug-in IF module
– Sensors are available as accessories.
– Bypass sets are available as accessories.
Operating Data
Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Fluid concentration: 100.00 %
Requested flow:
Requested head:
Product data
Min. fluid temperature: -15 °C
Max. fluid temperature: 120 °C
Max. ambient temperature: 50 °C
Maximum operating pressure: 25 bar
Maximum inlet pressure: 1,000 kPa
Minimum efficiency index (MEI): ≥ 0.4
Motor data
Electromagnetic compatibility: EN 61000-6-1, -2, -3, -4
Mains connection: 3~400V/50 Hz
Voltage tolerance: 400/50:+/-10%, 380/60:+/-10%, 440/60:+/-6%
Rated power: 5.5 kW
Motor efficiency class: IE4
Rated current: 5.6 A
Min. speed: 1,000 1/min
Max. speed: 2,905 1/min
Insulation class: F
Protection class: IP55
Materials
Pump housing: 5.1301/EN-GJL-250
Impeller: 1.4408
Shaft: 1.4057
Shaft seal: U3BE3GG
Gasket material: EPDM
Stage chamber material:
Installation dimensions
Pipe connection on the suction side: DN 100, PN 25
Pipe connection on the discharge side: DN 100, PN 25
Ordering information
Brand: Wilo
Product description: MVIE 7001-3/25/E/3-2-2G
Net weight, approx.: 133.9 kg
Article number: 4122319
