| Product name | SOLOLIFT2 D-2 |
| Product No | 97775328 |
| EAN number | 5710624187371 |
| Pump speed on which pump data are based | 2800 rpm |
| Rated flow | 1.06 l/s |
| Maximum flow | 1.98 l/s |
| Rated head | 3.26 m |
| Maximum head | 5.5 m |
| Type of impeller | VORTEX |
| Max. Particle | 10 mm |
| Approvals | CE,CHROHS,MORO,RCM,WATERMARK |
| Curve tolerance | ISO9906:2012 3B |
| Pump housing | Composite |
| Impeller | Polymer – PA |
| Tank | PLASTIC |
| Range of ambient temperature | 0 .. 40 °C |
| Type of inlet connection | Smooth pipe |
| Type of outlet connection | Smooth pipe |
| Size of inlet connection | 36/40/50 |
| Size of outlet connection | 22/32 |
| Pressure rating for connection | PN 1,5 |
| Number of leads | 3X0,75MM2 |
| Liquid temperature range | 0 .. 50 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Power input P1 | 280 W |
| Rated power – P2 | 0.16 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 220-240 V |
| Rated current | 1.3 A |
| Cos phi – power factor | 0.95 |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | IP44 |
| Insulation class (IEC 85) | F |
| Thermal protec | THERMIK S06-160-05 |
| Power cable type | H05VV-F-3G |
| Length of power cable | 1.2 m |
| Power plug | AUSTRALIEN |
| Tank volume nominal | 2 l |
| Net weight | 4.78 kg |
| Gross weight | 6.25 kg |
| Shipping volume | 0.022 m³ |
| Environmental approvals | WEEE |

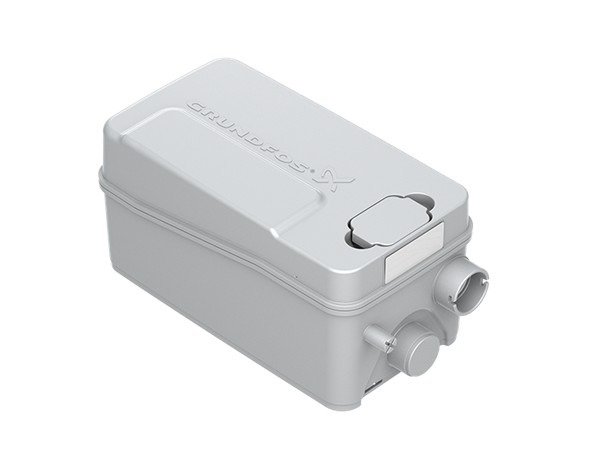

SOLOLIFT2 D-2
