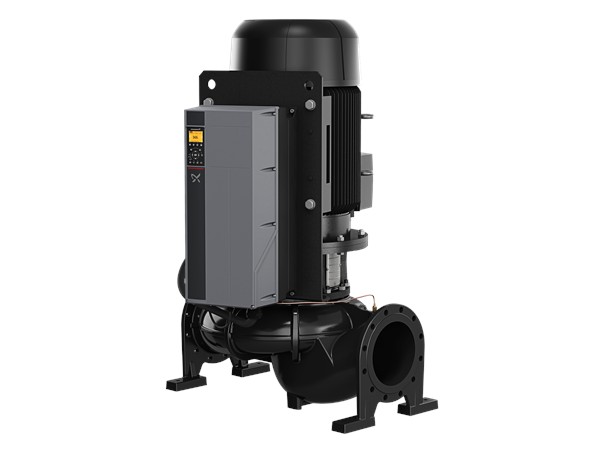

| Product name | TPE 300-220/4 SC-A-F-O-BQQE-SW3 |
| Product No | 99474606 |
| EAN number | 5713829711785 |
| Pump speed on which pump data are based | 1482 rpm |
| Rated flow | 736.9 m³/h |
| Rated head | 15.75 m |
| Maximum head | 220 dm |
| Actual impeller diameter | 272 mm |
| Primary shaft seal | BQQE |
| Code for shaft seal | BQQE |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Pump housing | Ductile iron |
| Impeller | Cast iron |
| Material code | O |
| Range of ambient temperature | -10 .. 50 °C |
| Maximum operating pressure | 16 bar |
| Max pressure at stated temp | 16 bar / 120 °C |
| Pipe connection standard | EN 1092-2 |
| Type of connection | DIN |
| Size of connection | DN 300 |
| Pressure rating for connection | PN 16 |
| Port-to-port length | 1240 mm |
| Flange size for motor | FF400 |
| Connect code | F |
| Pumped liquid | Water |
| Liquid temperature range | -25 .. 120 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Motor type | INNOMOTICS |
| Rated power – P2 | 37 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-420D/660-725Y V |
| Rated current | 66/38.5 A |
| Starting current | 640 % |
| Cos phi – power factor | 0.86 |
| Rated speed | 1478 rpm |
| IE efficiency | IE3 93,9% |
| IE Efficiency class | IE3 |
| Motor efficiency at full load | 93.9 % |
| Motor efficiency at 3/4 load | 94.5 % |
| Motor efficiency at 1/2 load | 94.4 % |
| Number of poles | 4 |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | PTC |
| Motor No | 99454136 |
| VFD product number | 99616824 |
| Frequency converter | Built-in |
| Type of frequency converter | CUE 3X380-500V IP55 RUG 37KW |
| Appr. for VFD | CE, CULUS, C-TICK |
| Minimum efficiency index, MEI ≥ | 0.70 |
| Net weight | 983 kg |
| Gross weight | 1110 kg |
| Shipping volume | 3.62 m³ |
| Config. file no | 99465360 |
TPE 300-220/4 SC-A-F-O-BQQE-SW3
