| Product name | TPED 150-130/4 A-F-B-BAQE-MWA |
| Product No | 99114718 |
| EAN number | 5712607034603 |
| Pump speed on which pump data are based | 1482 rpm |
| Rated flow | 171.9 m³/h |
| Rated head | 9.66 m |
| Maximum head | 130 dm |
| Actual impeller diameter | 196 mm |
| Primary shaft seal | BAQE |
| Code for shaft seal | BAQE |
| Curve tolerance | ISO9906:2012 3B2 |
| Pump version | A |
| Pump housing | Cast iron |
| Impeller | Bronze |
| Material code | B |
| Range of ambient temperature | -20 .. 50 °C |
| Maximum operating pressure | 16 bar |
| Max pressure at stated temp | 16 bar / 120 °C |
| Pipe connection standard | EN 1092-2 |
| Type of connection | DIN |
| Size of connection | DN 150 |
| Pressure rating for connection | PN 16 |
| Port-to-port length | 800 mm |
| Flange size for motor | FF265 |
| Connect code | F |
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 120 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Motor type | 132MH |
| Rated power – P2 | 7.5 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 380-500 V |
| Rated current | 14.1-11.1 A |
| Cos phi – power factor | 0.93-0.89 |
| Rated speed | 180-2200 rpm |
| IE Efficiency class | IE5 |
| Motor efficiency at full load | 92.2 % |
| Number of poles | 4 |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | ELEC |
| Motor No | 93026097 |
| Control panel | HMI200 – Standard |
| Function Module | FM310 – Advanced |
| Frequency converter | Built-in |
| Minimum efficiency index, MEI ≥ | 0.66 |
| Net weight | 532 kg |
| Gross weight | 575 kg |
| Shipping volume | 1.87 m³ |
| Config. file no | 99100733 |

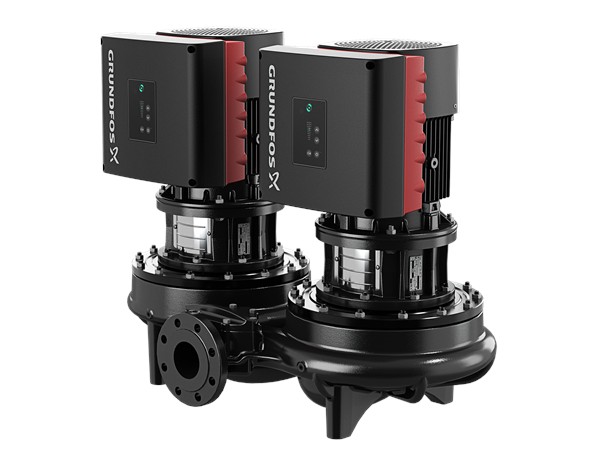

TPED 150-130/4 A-F-B-BAQE-MWA
