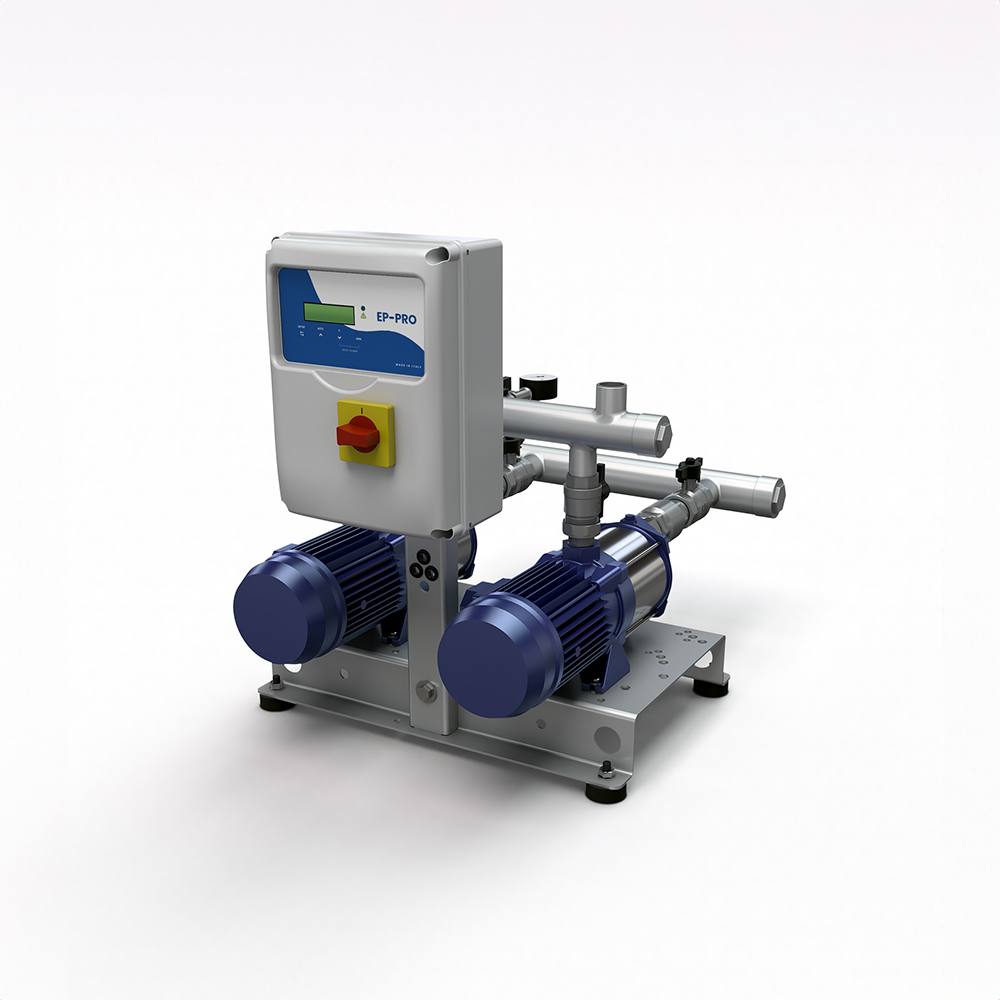

Name: Ebara - 2GP AGA 1.00 M - Part Number: 2GP AGA 1.00 M
Brand: Waterials
SKU: 2GP AGA 1.00 M
Availability: InStock

1	Pump type	Booster Set	Fluid	Water
2	Number of pumps	2	Liquid temperature °C	20
3	Flow m³/h		Kin. viscosity cSt	1.005
4	Head m		Vapour pressure kPa	2.34
5	Geodetic head m		PH value
6	Inlet pressure kPa	0	Density kg/m³	998.3
7	Available system NPSH	Ask our technical department.	Solids Weight %	0
8	Ambient temperature °C	20	Installation height m	100

Booster Set
9	Booster set name	2GP AGA 1.00 M	Frequency Hz	None	50
10	Design	Booster Set		None
11	Manufacturer	EBARA	Impeller Dia.	Max. mm	130
12	Speed rpm	2830	None	Designed mm	130
13	No. of Stage	1	None	Min. mm	130
14	Connection Suction side	G1 1/2 PN10	Flow	Operating m³/h
15	Connection Discharge side	G1 1/2 PN10	None	Max- m³/h	3.6
16	Max Working Pressure kPa	600	None	Min- m³/h	0.3
17	Shut-off head kPa	489.72	Head	Operating m
18	Total weight kg	See the table of “Dimensions”.	None	– (Qmax.) m	23.0
19	Shaft power kW		None	– (Qmin.) m	47.5
20			Max. Shaft Power at max. impeller kW	None	0.71
21	Required NPSH m		Efficiency %	None

Materials
22	Frame	Galvanized steel	Casing cover	AISI 304
23	Manifold	AISI 304	Shaft	AISI 303
24	Check valve	Brass / NBR	Shaft seal	Ceramic/Carbon/NBR
25	Ball valve	Brass / PTFE	O-ring	NBR
26	Impeller	PPE+PS glass fibre reinforced	Ejector	PPE+PS glass fibre reinforced
27	Casing	Cast iron	Diffuser	PPE+PS glass fibre reinforced
