Product Name

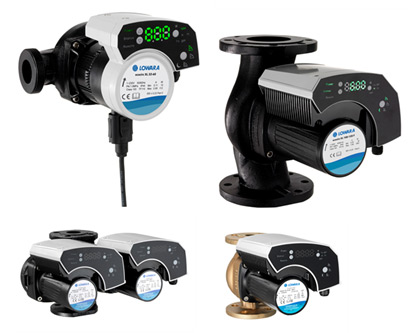

Lowara Ecocirc XL 25-40
General Specifications
-
Standard: ISO 9906:2012 – Grade 3B
-
Rated Voltage: 230 V
-
Frequency: 50 Hz
-
Rated Current: 0.5 A
-
Protection Class: IP 44
-
Insulation Class: F
-
Net Weight: 2.8 kg
-
Gross Weight: 3.6 kg
-
Pressure Rating: PN 6/10
-
Operating Medium: Water (100%)
-
Operating Temperature: -10°C (14°F) to +110°C (230°F) for heating pumps, -10°C (14°F) to +85°C (185°F) for domestic hot water pumps
-
Specific EEI: ≤ 0.23
-
Sound Pressure Level: ≤ 38 dB(A)
Materials
-
Pump Body: Cast Iron
-
Rotor Can: Stainless Steel
-
Motor Housing: Aluminum
-
Casing Plate: Stainless Steel
-
Shaft: Stainless Steel
-
Impeller: PPO
-
Neck Ring: Stainless Steel
-
O-Rings: Polycarbonate
-
Mechanical Seal Ball: 1/2″ Aluminum
-
Bush Bearing: Carbon, resin impregnated
Hydraulic Performance
-
Max Flow Rate: 4 m³/h
-
Head: 4.2 m
Pump Dimensions (mm)
-
B1: 191
-
B2: 145
-
B3: 46
-
B4: 83
-
B5: 43
-
C3: 81
-
C4: 120
-
C5: 39
-
G: G 1½ – Rp 1
-
H1: 148
-
H2: 59
-
H3: 74
-
H4: 40
-
L: 180
